Instrument Details

To view the details of an instrument, you can do one of the following:

• Select a transaction from the Pending Approval screen
• Select an instrument from the Current Instruments screen
• Select an instrument from the Past Instrument screen

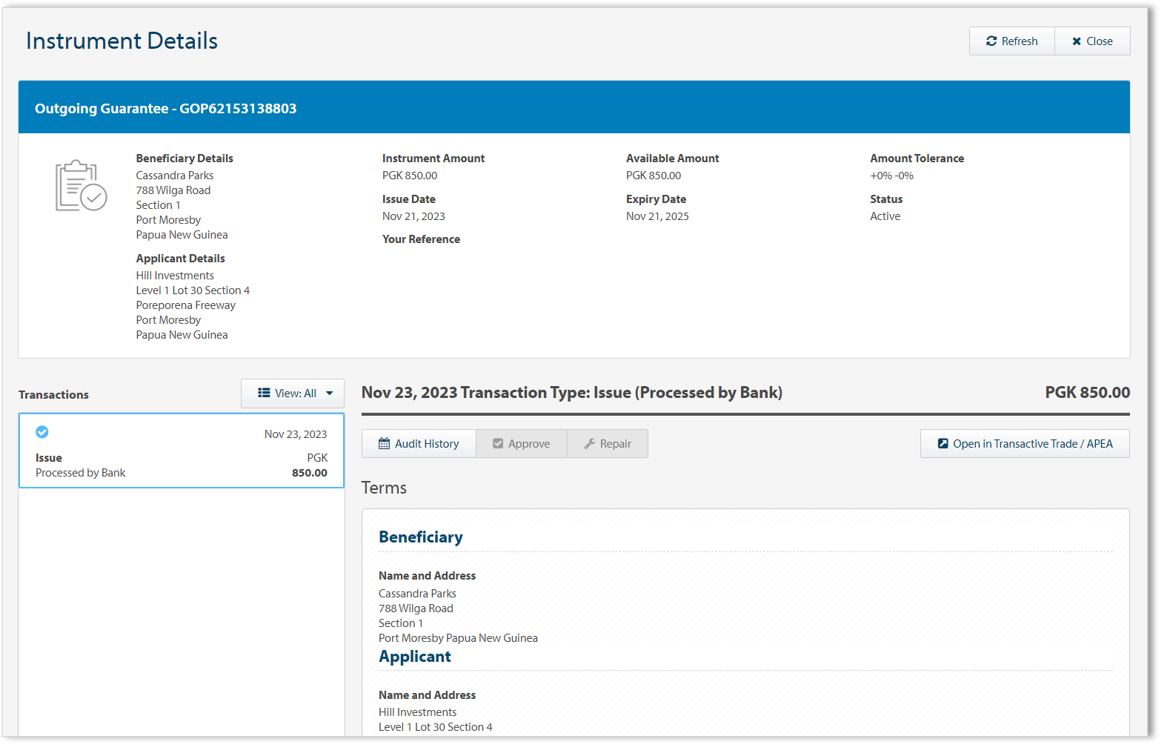

The Instrument Details screen consists of three main sections:

• Instrument Summary - Displays key instrument information that applies to all transactions associated with the instrument. The information displayed varies depending on the instrument type
• Transaction List - Lists the transactions associated with the instrument. For each transaction listed, the following information is displayed:
  • Transaction Type
  • Transaction Status
  • Transaction Date
  • Transaction Currency
  • Transaction Amount
• Transaction Details - Displays the details of the selected transaction from the Transaction List. The information displayed varies depending on the transaction type.

Instrument Details Control Bar

Transaction List Control Bar

NAME	DESCRIPTION

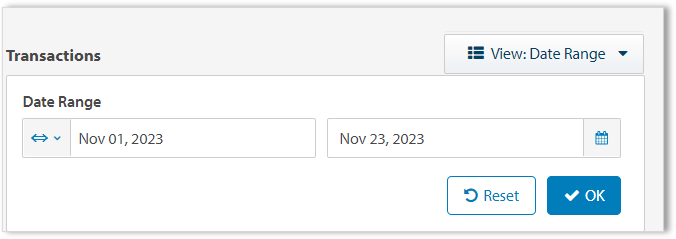

View	View all transactions for an instrument or filter the transactions listed using the transaction dates entered.  Click Reset to clear the dates entered  Click OK to filter the list of transactions displayed  Select a transaction to view the details of that transaction

Instrument Details Control Bar

The control bar items displayed are determined by the status of the transaction and your user permissions.

NAME	DESCRIPTION

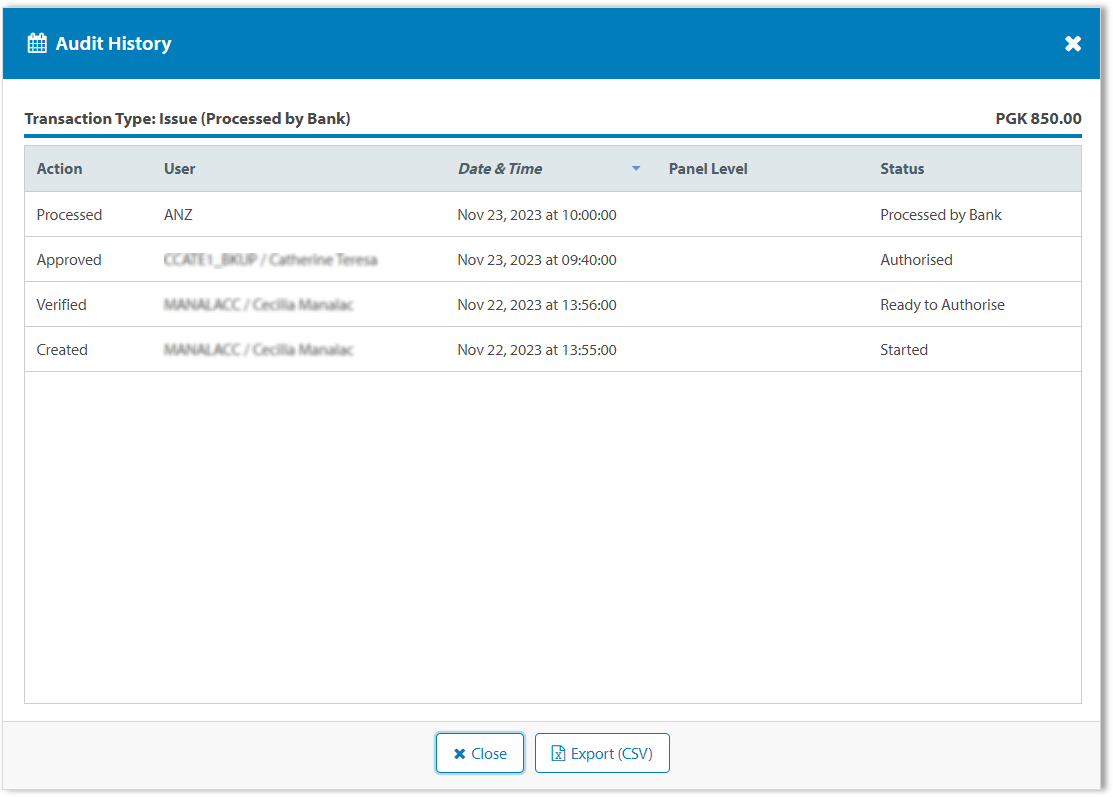

Audit History	View the Instrument Audit History pop-up window. Click Close to close the pop-up window and return to the Instrument Details screen  Click Export (CSV) to export the records displayed into a CSV file
Approve	Approve the selected transaction. The button will only be enabled if the transaction is in a Ready to Authorise or Partially Authorised status and you have Approve entitlements.
Repair	Send the selected transaction for Repair. The button will only be enabled if the transaction is in a Ready to Authorise, Partially Authorised, Ready to Check or Authorise Failed status and you have repair entitlements.
Open with Transactive Trade / APEA	Open the selected transaction in ANZ Transactive Trade / APEA in a new tab without the need for you to login again.
